Configuring Server-Side Ad Settings

Ad configurations define various aspects of ad playback, including ad calls, timing, beacons and other ad configuration options. The Server-Side Ad Settings define the ads that can be requested during video on demand (VOD) videos and during live events. Server-side ads take advantage of Brightcove's Server-Side Ad Insertion (SSAI) technology and provide these main features:

• Since ads are stitched into the on-demand or live video stream on the server side, they are not affected by ad blockers
• For live events, ads are inserted at cue points sent from your encoder or you can create an instant cue point using the Live module Control Room
• You can configure fill slates to fill any unused ad time

To learn more about server-side advertising, see Implementing Server-Side Ads with the Brightcove Player.

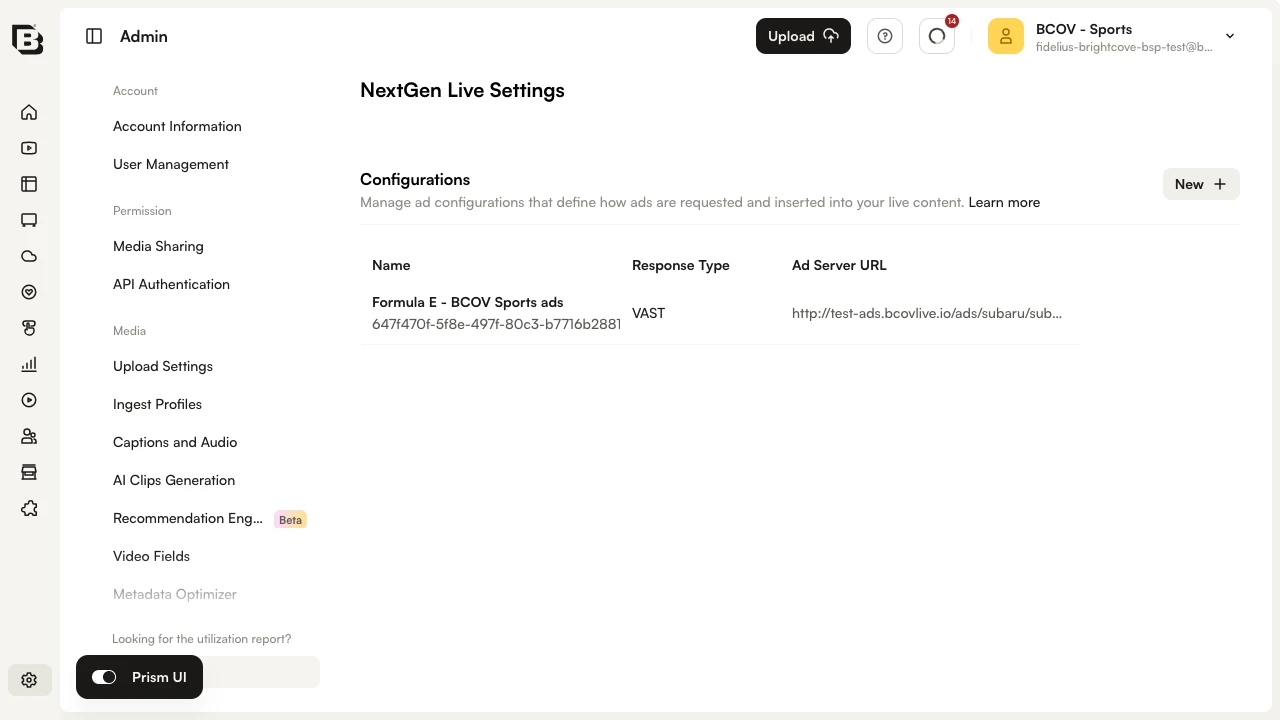

The Server-Side Ad Settings page is used to manage the Live and VOD ad configurations. Note that to access the Server-Side Ad Settings page, you must be a user with the Administrator role.

To access the Server-Side Ad Settings page:

1. Login to Studio.

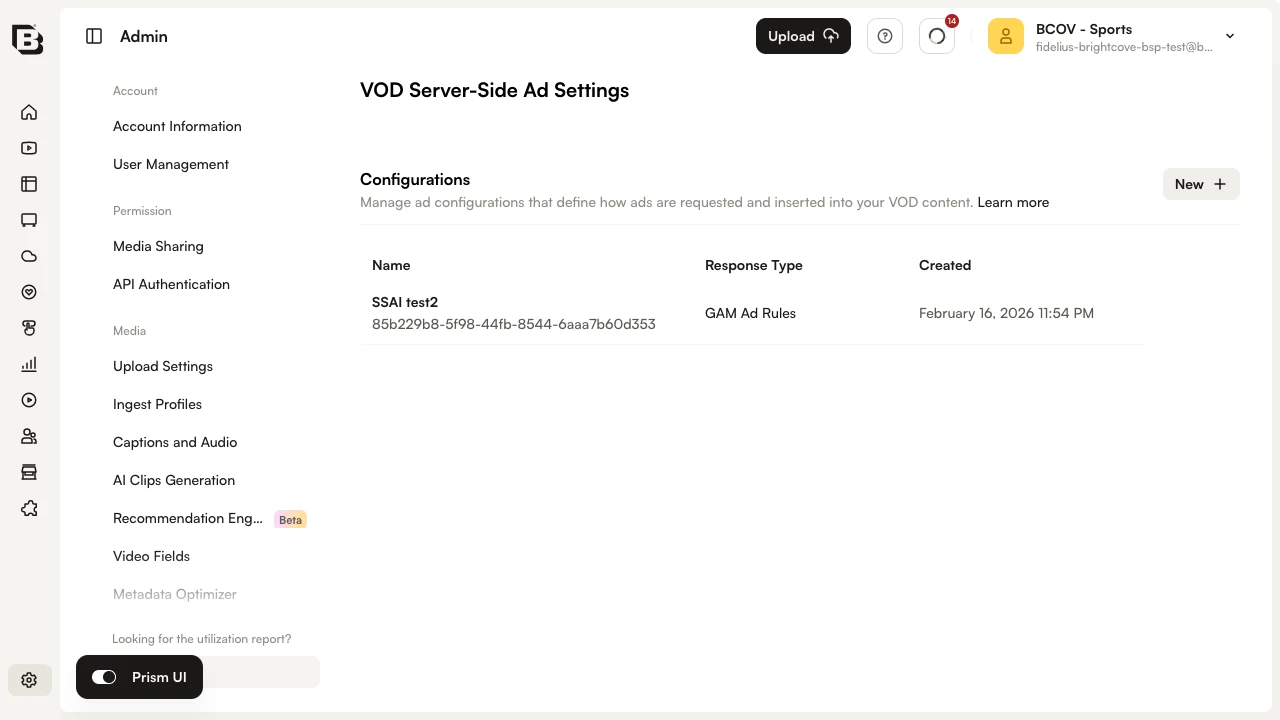

2. Open the Admin module and then Server-Side Ad Settings. A list of all ad configurations will be displayed.



To create a new add configuration, click + Add configuration ∧ and then click the specific type of ad to create:

• Video on Demand (VOD)
• Live

Creating a Video On Demand ad configuration

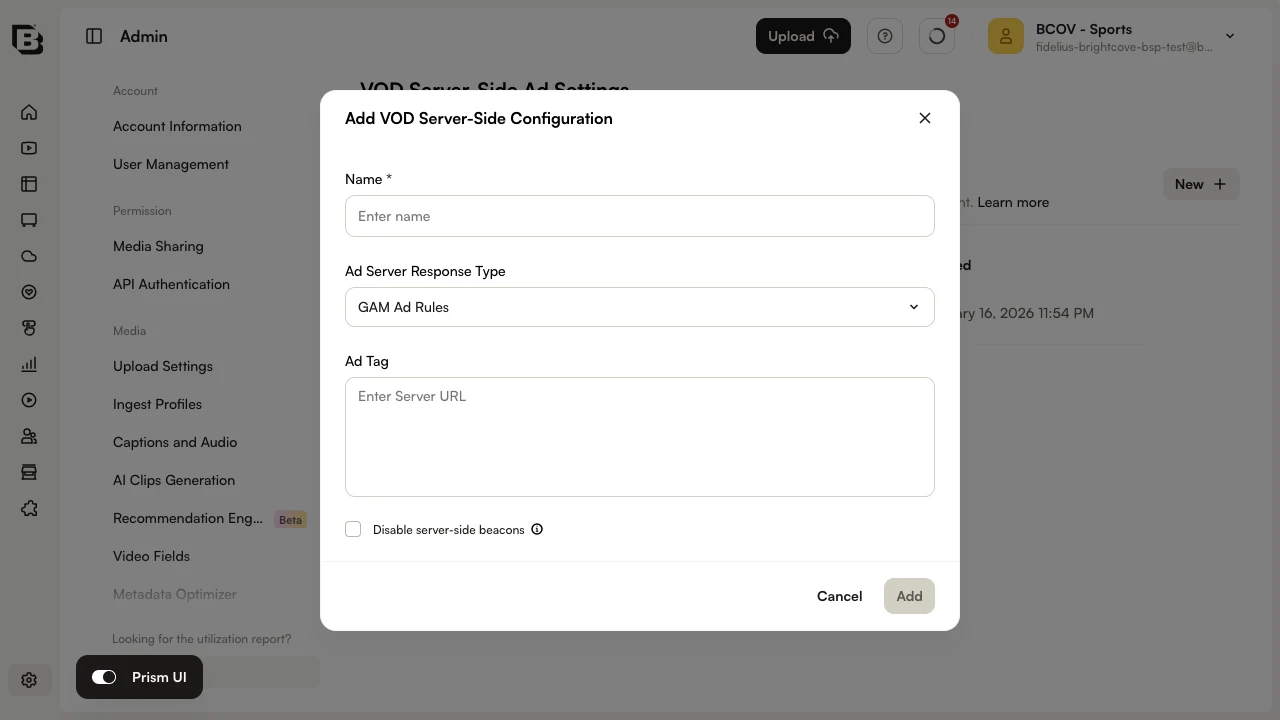

To add a Video On Demand (VOD) ad configuration, follow these steps.

1. On the Server-Side Ad Settings page, click + Add configuration ∧ > VOD.



2. Enter a Name.

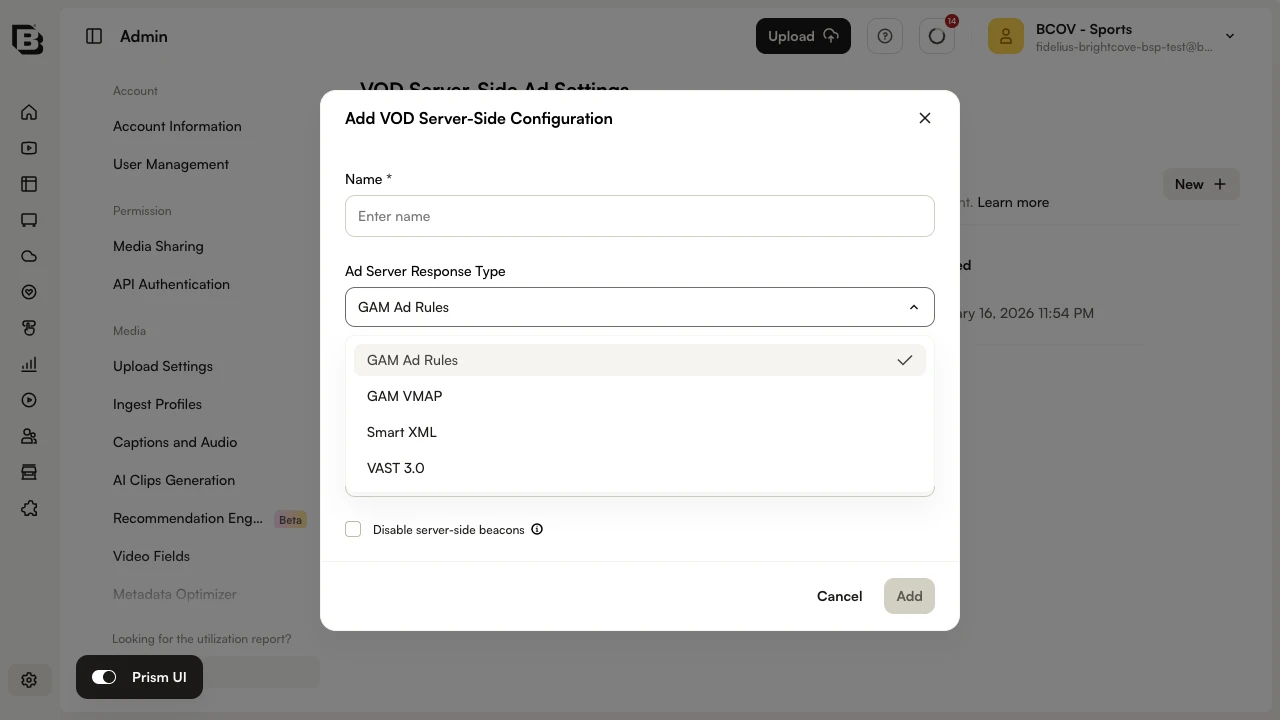

3. Select the Ad Server Response:
   • DFP Ad Rules - Proprietary format for Google DFP, which has been rebranded as Google Ad Manager(GAM)
   • DFP VMAP - Video Multiple Ad Playlist (VMAP)
   • Smart XML - Proprietary format for FreeWheel
   • VAST - Digital Video Ad Serving Template (VAST)

   For details, see the Video Cloud SSAI API document.

4. Enter the Ad Tag.
5. Check Disable server-side beacons to disable server-side beacons. When disabled, SSAI will not fire any beacons server-side and will include all beacons in the VMAP output.
6. Click Save.

To edit an ad configuration, click the ad name, make the changes and then click Save. To delete an ad config, check the box next to the ad and then click Delete. To duplicate an ad config, check the box next to the ad and then click Duplicate.

Once VOD ad configurations have been created, open the Players module and click on a player to view the properties. When the Enable Server-Side (SSAI) advertising property is enabled, an ad configuration can be selected. For information on configuring player advertising, see Configuring Player Advertising using the Players Module.

Creating a Live ad configuration

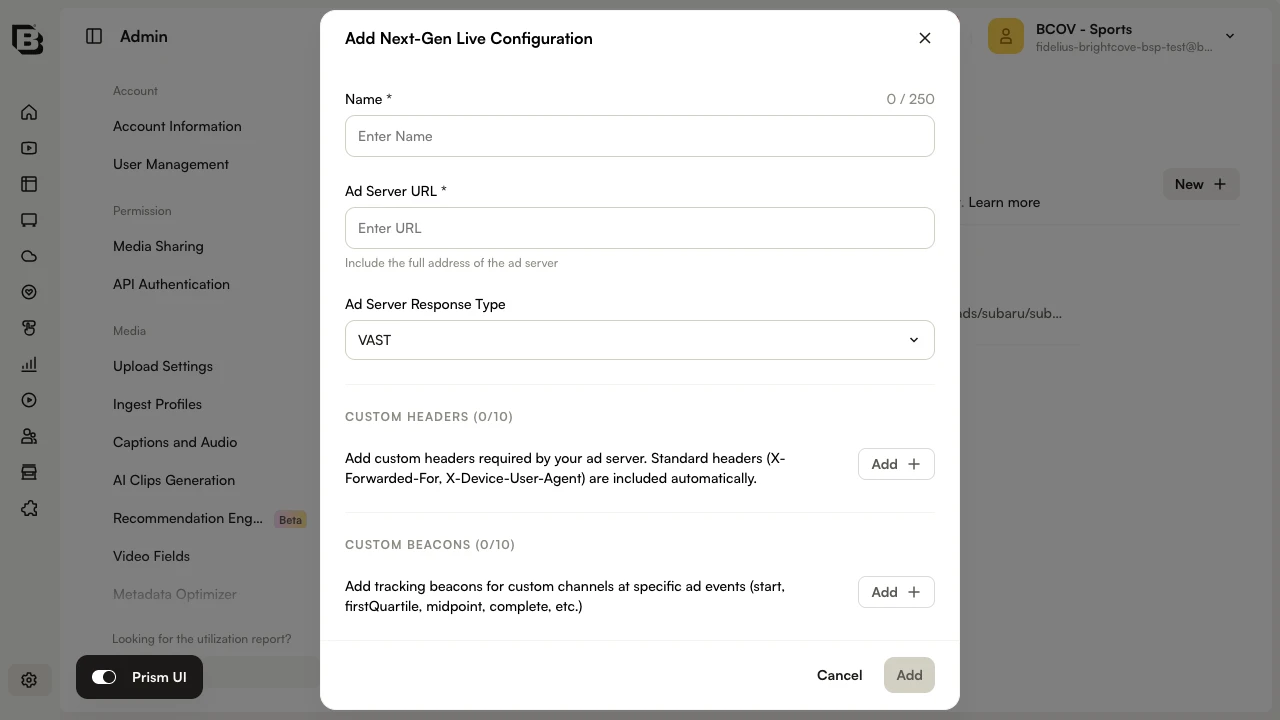

To add a Live ad configuration, follow these steps.

1. On the Server-Side Ad Settings page, click + Add configuration ∧ > Live.



2. Enter a Name.

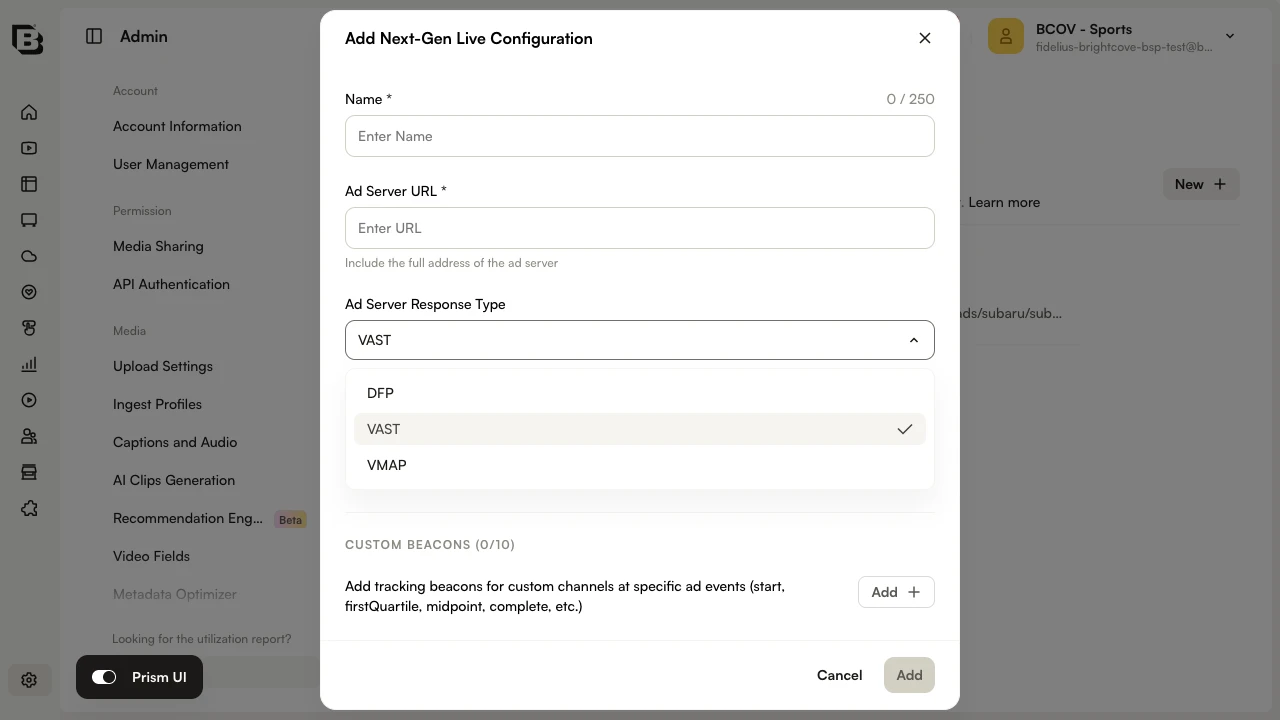

3. Select the Ad Server Response:
   • VAST - Digital Video Ad Serving Template (VAST)
   • DFP (Ad Rules) - Proprietary format for Google DFP, which has been rebranded as Google Ad Manager(GAM)
   • Smart XML - Proprietary format for FreeWheel
4. Enter the Ad Tag.
5. Click Save.

To edit an ad configuration, click the ad name, make the changes and then click Save. To delete an ad config, check the box next to the ad and then click Delete. To duplicate an ad config, check the box next to the ad and then click Duplicate.

Once Live ad configurations have been created, when an event is created with the Enable Server-Side Ad Insertion (SSAI) property enabled, an ad configuration can be selected in the Control Room. For information on creating live events, see Creating and Managing Live Events using the Live Module.

Player Enhancements for Live SSAI

Brightcove's Player Enhancements for Live SSAI allows you to add client-side components to live streams, including ad counts, ad countdown timers, click through ads and companion ads. For details, see the Overview: Player Enhancements for Live SSAI document.

To use this feature, contact your Customer Success Manager to enable your account for:

• Live streams
• Server-Side Ad Insertion (SSAI)
• Player Enhancements for Live SSAI

To add player enhancements, follow these steps:

1. On the Server-Side Ad Settings page, click + Add configuration ∧ > Live.



2. Enter the data as described in the add a Live ad configuration steps above.
3. Select the client-side components that you want to add to your live stream.
4. Click Save.
