Scheduled Channels with Beacon Classic

Prerequisites

In Beacon Studio:

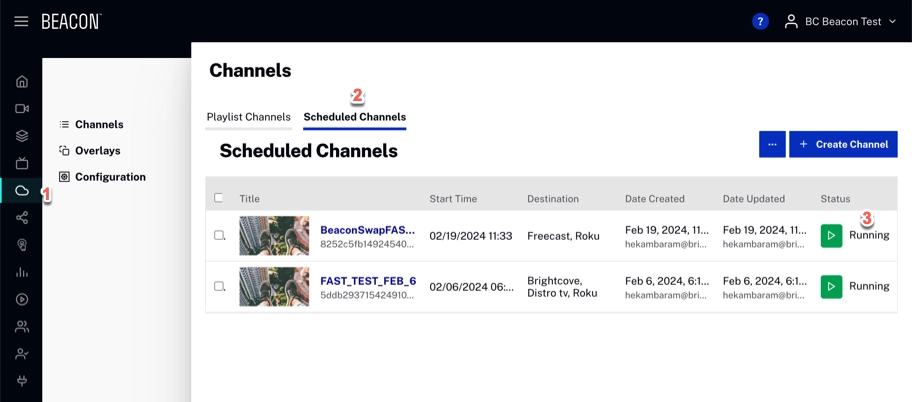

• Navigate to the Cloud Playout module. Then, fill the schedule with content and make sure it is in a start/running status.



• It is necessary to have the Channel ID.

Navigate to the Live Module for the channel. You will need:

• Video ID (via standard embed code).
• Ad Config ID .

In Beacon Classic:

1. Login to Beacon Classic.
2. Navigate to Advertisement.
3. Click Add New Configuration.

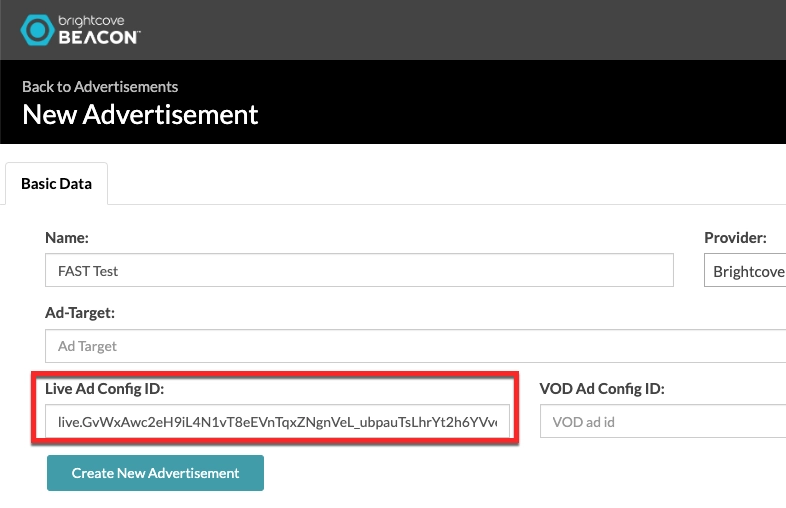

4. Create Advertisement as SSAI with Live Ad Config ID.



   Click Create New Advertisement.

5. Navigate to Channels.

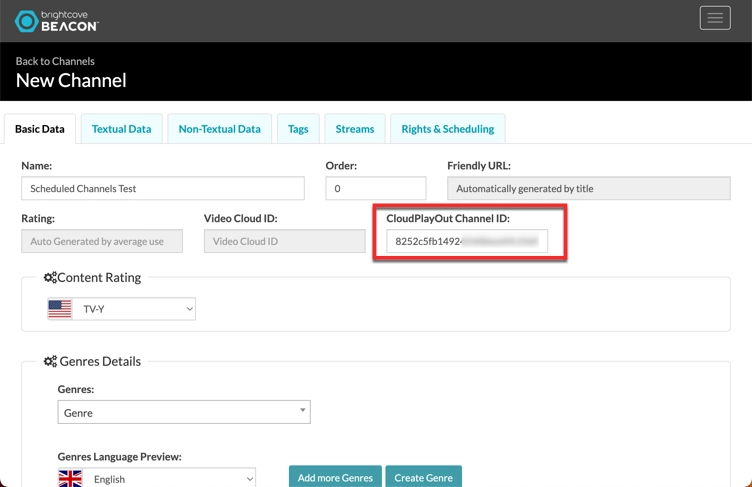

6. Click the Channel. It's sent to Basic Data. Localize CloudPlayOut Channel ID and fill it with the Channel ID. Click Update Channel.

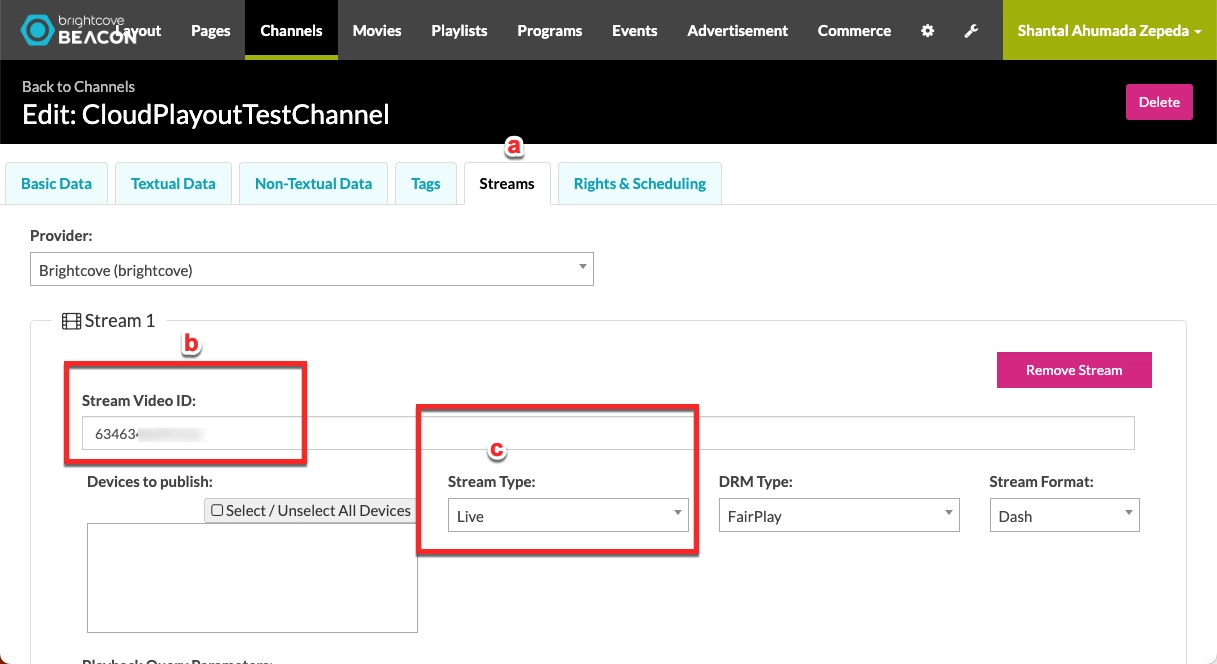

7. Navigate to streams and add the Stream Video ID. In Stream Type select Live.



   Click Add new stream.

8. Navigate to Rights & Scheduling. Set the AVOD and Advertisement Configuration created.

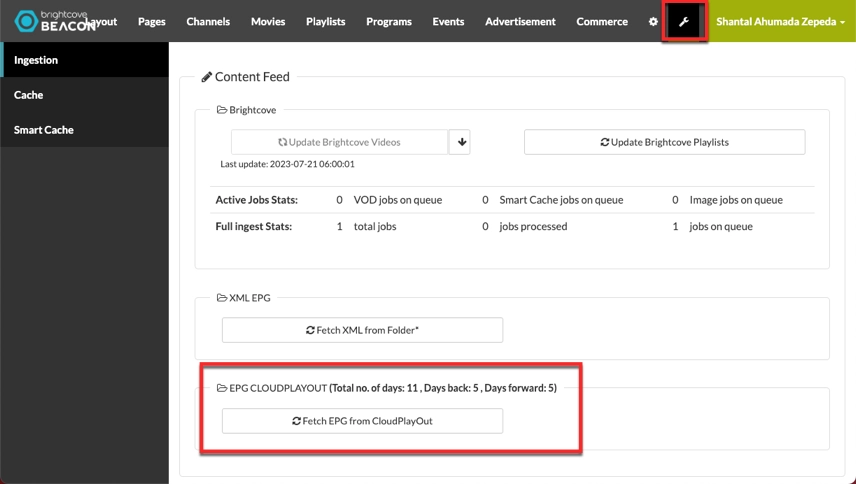

9. Click to configuration and fetch EPG.



10. Go back to Channels, click EPG and click action to add the items.
